Eli’s Smart Mirror

A mirror that utilizes a monitor to display compliments, the weather, calendar, and the time.

Engineer	School	Career	Grade
Elijah A	Benjamin Banneker Acadmey	Civil Engineering	Incoming Senior

Third Milestone 😃

In summary, I downlaoded rasperrypi onto my computer. Then, I connected my raspberry pi to my monitor. After, I created a SSH file so I can download Magic Mirror. Then, I installed Magic Mirror onto my VS appplication. Once the base was completed, I made a few customizations to my project such ass adding compliments, adding the weather forecast, and changing the colors for the calendar, weather icons, and some of the text.

Second Milestone 😄

My second Milestone was customizing Magic Mirror. First, I added effects for my alerts. Then, I decided to change the color for my calendar. After, I added compliments to my project. The compliments I added were based on the date, time, and weather. For instance, when it’s morning, my mirror will greet me with a good morning message. Additonally, when it’s raining, my mirror will message be to be safe during rainy weather. I added the weather forescast in order for my weather compliments to work. When adding the weather, I added my location and changed the weather from celsius to fahrenheit. Also, I added colors for weather icons and changed the color to a light color purple in the main css.file

First Milestone 😁

My first milestone was setting up the base for my project. First, I set up my raspberry pi and connected it to my monitor. Then, I pinged my IP address. After, I got a coding apllication called Visual Studio to create a SSH file for my project. Lastly, I installed Magic Mirror, which is a Node JS Application. Magic Mirror assisted in generating the base I need for my project. With it, I can chan ge or add codes to make my smart mirror suitable for me.

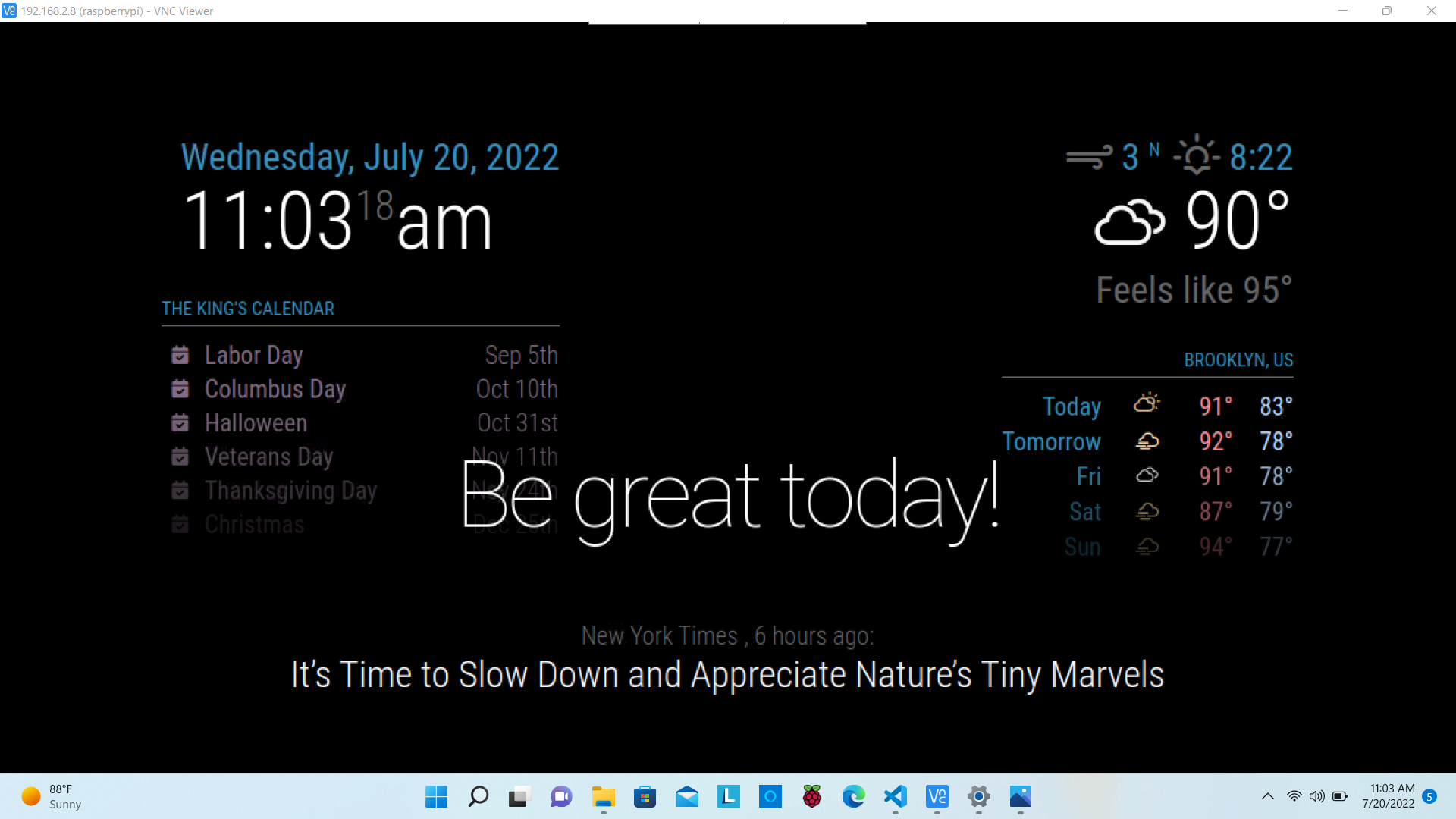

# Preview of setup Weather compliments

				showers: ["Not bad"],
				thunderstorm: ["AHHHH RUN"],
				 snow: ["snow in NY?"],
				showers: ["Not bad"]
				fog: ["Don't be lacking"],
				rain: [
					"Stay dry!"
				],
                                     night_clear: [
					"Enjoy the night",
				],
				night_cloudy: [
				" It's peaceful out"
				],
				night_showers: ["be chill tonight"],
				night_rain: ["rainy nights are the best"],

Weather Configuration

		config: {
			weatherProvider: "openweathermap",
			type: "current",
			location: "New York",
			locationID: "5110302", //ID from http://bulk.openweathermap.org/sample/city.list.json.gz; unzip the gz file and find your city
			apiKey: "0d3f272a11a8f28806cc6914217d3798",
			units: "imperial",
			roundTemp: true,
			degreeLabel: false,
			showPeriod: false,
			showPeriodUpper: false,
			roundTemp: true,
			timeFormat: 12,

Setup for Weather icons

          .wi-day-cloudy {
          color:burlywood;
                  }

            .wi-cloudy{
         color: #ffffff;
                       }
            .wi-rain{
           color: #0000ff;

                       }

             .wi-day-rain{
          color:aquamarine;
                         }
          .wi-day-showers{
        color:cornflowerblue;
                           }
      .wi-day-sunny-overcast{
         color: gold;
                           }

            .wi-night-clear{
               color: grey;
                           }
